Designed specifically for Capacitor Discharge, Linear, HFDC, Hybrid and Micro Arc Spot Welding Applications

•  Weld Monitor with PLC Interface

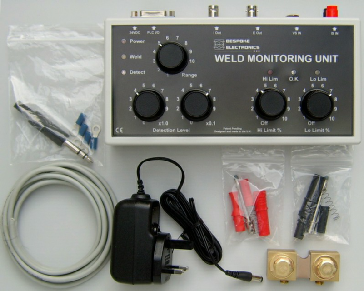

•  Fully bundled kit with PSU, cables & current shunt
•  Isolated Analogue Channels (Energy & Current)

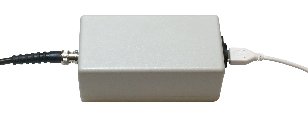

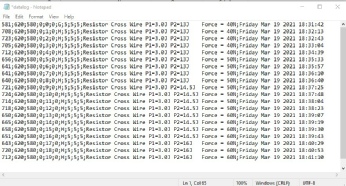

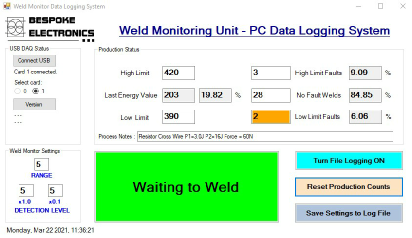

•  PC Based USB Weld Energy Data Logger System
•  Free Parts List & Schematics
•  No Guarantee or Liability Accepted

Customer tailored versions of the Weld Monitor are also possible.

Weld Monitor Data Logging System

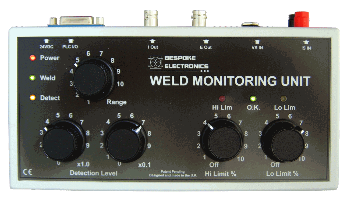

The Weld Monitoring Unit uses a patent pending measurement technique to realise a weld monitor that is both highly accurate and intuitive to setup and use.  The weld monitor provides simple controls that are quickly set to match an ideal welding condition, typically setup within 5 or 6 sample welds.

The intuitive controls provide an immediate numeric “weld program” value allowing multiple weld schedules to be accommodated, simply by dialling up the program numbers. The weld monitor provides upper and lower weld monitoring process limits that are quickly and intuitively set around the spot welding program.

Weld Monitor PDF data sheet            Weld Monitor Data Logging System PDF data sheet                     More Info at weld-monitor.com

Weld Monitor Data Logging System

Accurate, cost effective and easily fitted to existing micro spot welding equipment, this innovative Weld Monitor and data logging system delivers real-time micro weld monitoring and spot weld quality control performance at a fraction of the cost of competing conventional products.

Simple to setup and use, the Weld Monitoring Unit and Data Logging Unit are readily interfaced to Capacitor Discharge Spot Welders, Linear DC resistance welders, and most Micro Arc welders, providing real time Quality Control checks on every weld, while additionally providing PLC and analogue measurement signals to easily facilitate external data logging.

Weld Monitor PDF data sheet            Weld Monitor Data Logging System PDF data sheet                     More Info at weld-monitor.com
